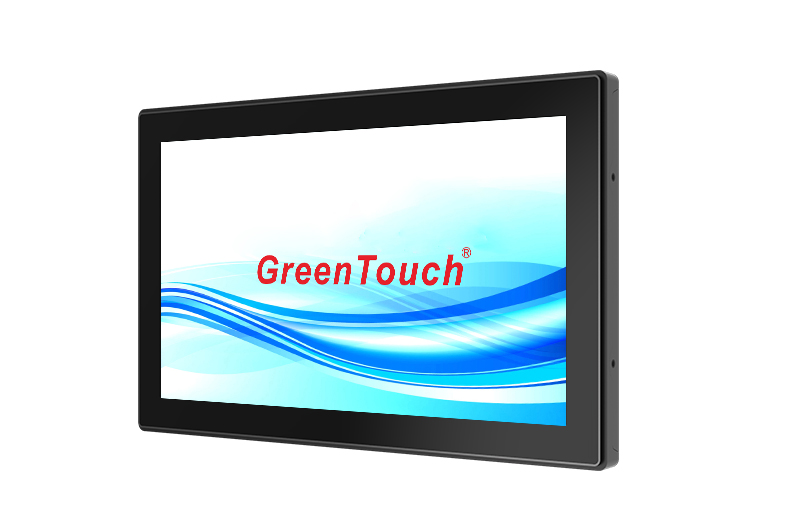

Product Overview GreenTouch 2C series touch display modules integrate a high-performance touchscreen with an original-grade industrial LCD panel into one compact embedded solution, helping industrial and commercial equipment manufacturers simplify system integration, reduce assembly complexity, and improve long-term product reliability. Our 2C Series uses carefully selected industrial LCD panels designed for stable operation, consistent image quality, and extended service life. With full viewing angles, the display maintains clear images, accurate colors, and excellent visibility when viewed from different directions, are suitable for a wide range of applications, including industrial automation, self-service terminals, internet of things, medical equipment, smart manufacturing. |
|
|

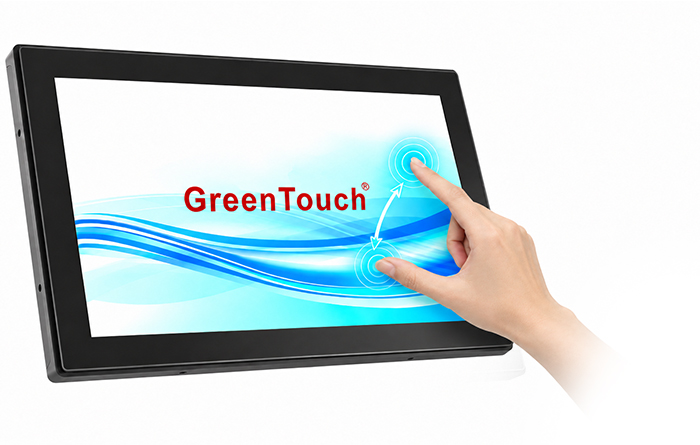

2C touch monitor adopt projected capacitive 10-point touch,sensitive sensing,accurate fixed point,anti-jamming positioning technology,small-strength touch has both sensing,fast and fast response,achieving super positioning and precise tracking.We provide one-year warranty for global customers,from product design to production,to software,to product testing,all by our company's professional team,in pursuit of perfect product operation and peripheral after-sales service.2C touch screen monitor have passed the CE,FCC,CB,RoHS,HDMI certifications. |

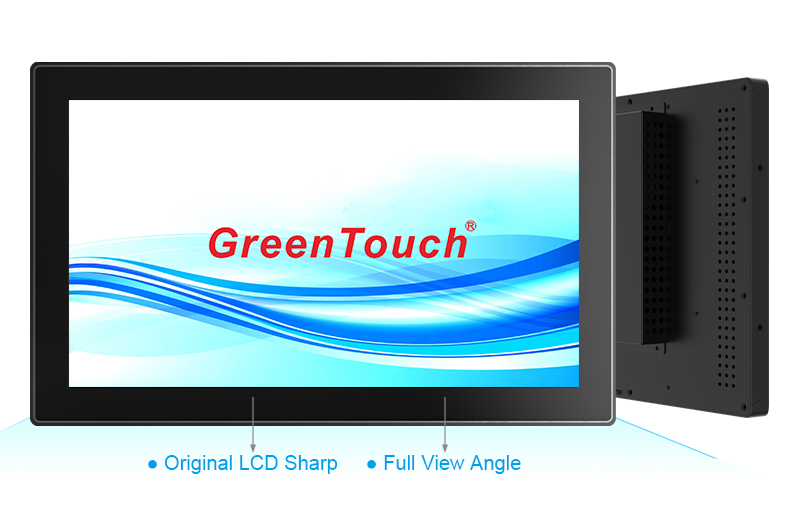

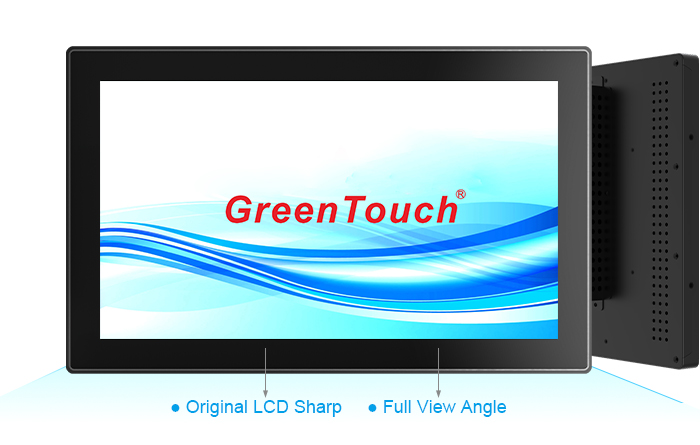

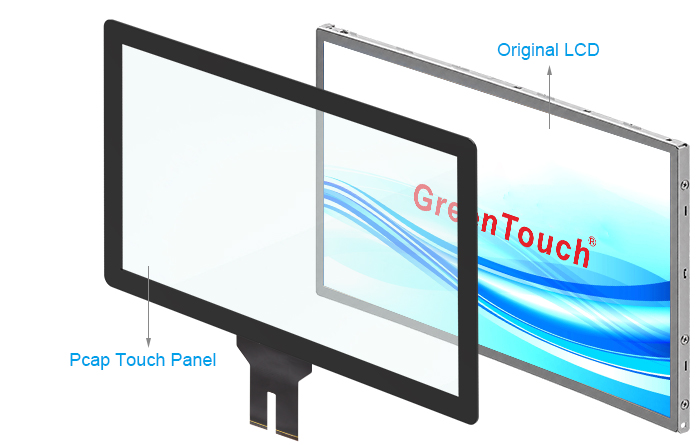

♦ Pure flat front panel, adopt original a-Si TFT-LCD(Sharp LQ156T3LW05) |  |

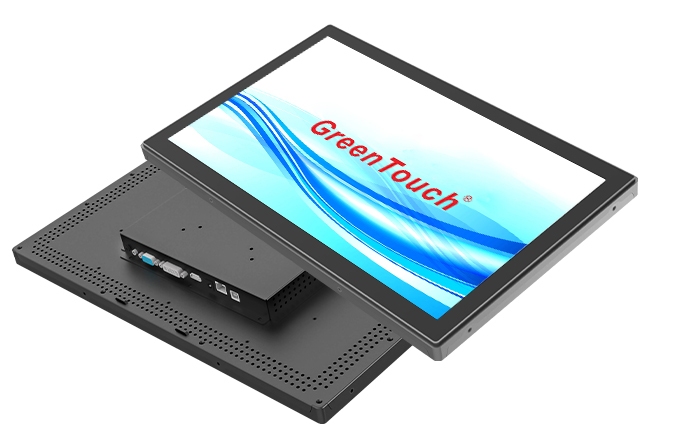

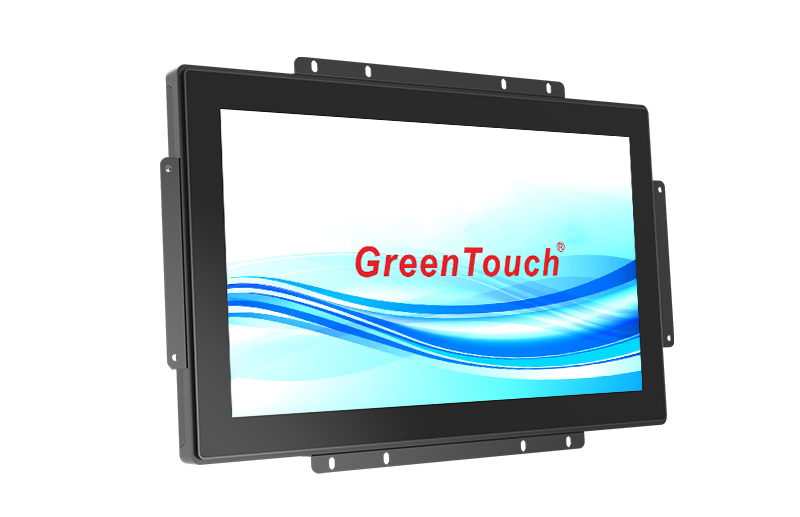

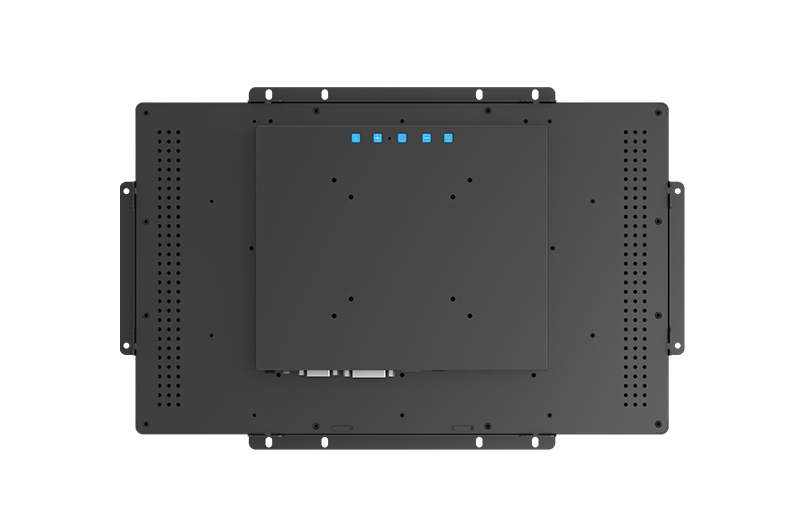

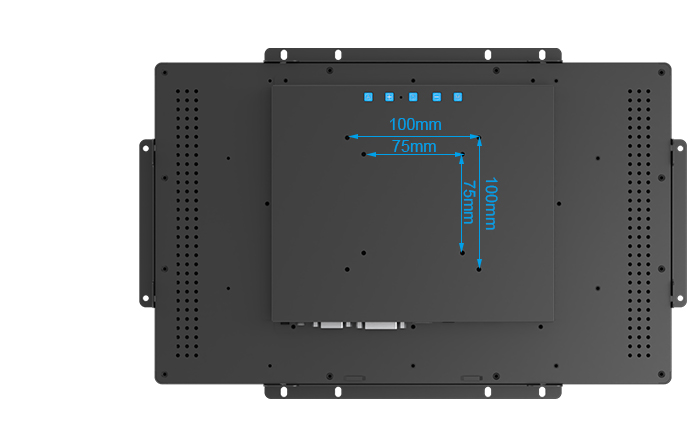

As shown the picture,2C touch monitor 15.6" is equipped with external bracket for embedded installation，it is equipped with a standard Vesa (75mm x 100mm) mounting hole for desktop or wall-mounted installation.The installation of these two methods is simple and easy to operate,allowing you to flexibly install in different scenarios. |
|
|
① Product size |

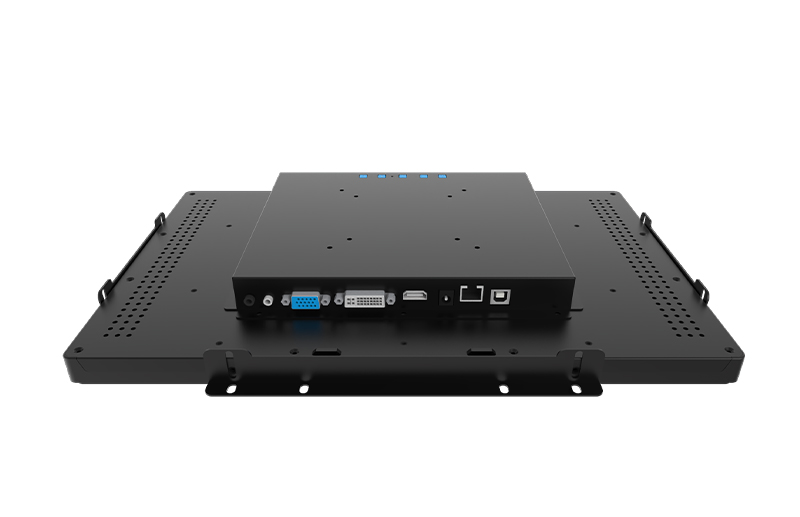

Display Ports Show
VGA+DVI+HDMI
VGA+HDMI+DP

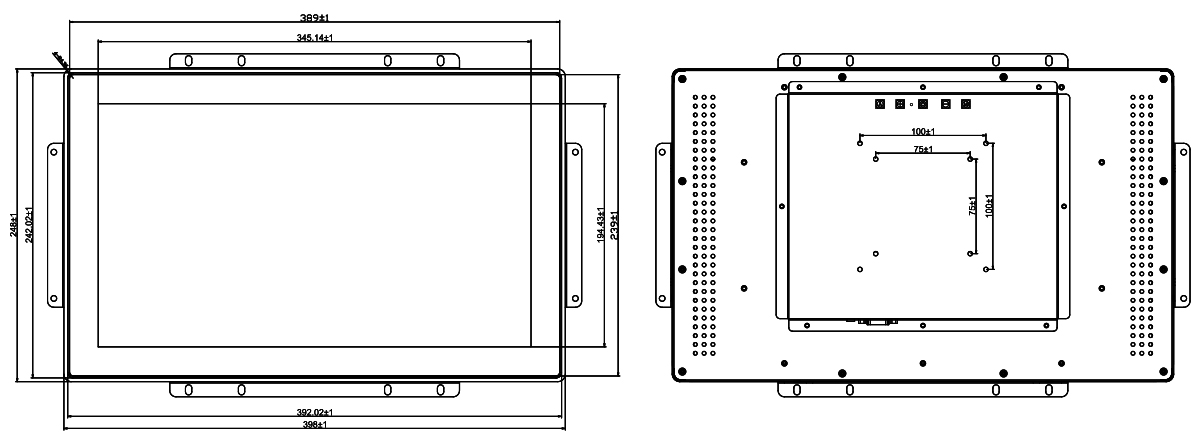

Drawing Show
GT-TM1562C-B-CTW10U,GT-TM1562C-F-CTW10U,GT-TM1562C-A-CTW10U
Application Field
Product Parameters
| Product Name | Open Frame Touch Monitor |
| Size | 15.6 Inch |
| Type | GT-TM1562C |
| Panel | a-Si TFT-LCD |
| Optimal Viewing Angle | Full View Angle |
| Brightness | 400 cd/m² |
| Active Area Dimensions | 344.232mm(H) x 193.536mm(V) |
| Display Size | 398mm(W) x248mm(H),Thickness: 46.5 mm |
| Resolution(pixel) | 1366 x 768 @ 60Hz |
| Display Colors | 16.7M |
| Response Time (standard) | 35ms |
| View Angle(from center) | L/R:85/85;U/D:85/85 (Typ.)(CR≥10) |
| Contrast Ratio (standard) | 1000: 1(Typ.) |
| Input Video Formats | Analog VGA and digital DVI, HDMI(DP Optional) |
| Sweep Frequency | 31.5~60.2kHz; vertical: 56.3~75 Hz |
| Touch Technology | Projected capacitive |
| Touch Chip | weida、eeti、ilitek |
| Touch points | 1-10 |
| Touch Supply Voltage | 5V |
| Touch Interface | USB |
| Touch Support System | Windows，Android，linux |
| Power | External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS(for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(±0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (±0.3 mm); Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD:5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm) |
| Power Consumption (standard) | Display only: 13.5W(Typ. |
| Temperature | Operating: -20℃~70℃; Storage: -25℃-70℃ |
| Humidity | Operating: 20% to 80% (no condensation); Storage: 10% to 90% (non condensing) |
| MTBF | 15,000 hours |
| Weight | (approx.) Net weight: 3.8 kg(Typ.); Shipping: 5.6 kg (reference |
| Warranty | 1 year |
| OSD | Digital OSD |
| User Controls | OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast, Brightness,Horizontal / Vertical Bits Clock, phase, call default, language (English, German,Spanish, Japanese,French); OSD Fail / Active: Power, OSD menu |
| OSD Remote Accessories | Optional controls (front):Menu, Up, Down, Select, Power |
| Mounting Options | 100mm or 75mm VESA mounting,open bracket mounting |
| Water and dust protection/Explosion-proof | IP65(front)/IK08(front) |
| Surface Treatment | AG AR AF（Customizable） |
| Agency Approvals | FCC, CE, CB,China RoHS CQC |
| Other Sizes | 7",8",9.7",10.1",12.1",13.3",14",15",15.6",17",18.5",19",21.5",22",23.6",23.8",27",32",43",50",55" |
